Create your first report using Report Wizard

Let’s go to the Reporting Services and start creating reports out of it and see how it works.

I assume, you have installed Reporting Services on your machine.

Click on Start -> All Programs -> Microsoft Visual Studio 2005-> Microsoft Visual Studio 2005.

Click no File Menu - > New -> Project


Now, there are two ways, we can create reporting services report,

Easiest way is to create report using Report Server Project Wizard, and for advance reporting need, we can go through Report Server Project and have your own set of objects into report.

As we can see, I have selected Report Server Project Wizard here. Provide name for this new project. Select location of the directory for this new project and click on OK.

If you are using this Report wizard first time then you will have this message, Click on Next.


On the next screen, select your data source.

Give name to this new data source, Select Microsoft SQL Server in Type Drop down then click on Edit in order to select Server Name, database and tables from the SQL Server.


Select Server Name -> Choose your server here.

Select Database -> Choose AdventureWorks from the drop down list.

Click on Test Connection, make sure you get success. Click OK.

Write down script as shown above and then hit “Next”…

Select Tabular Report


Choose how to group data in your table as shown above.

Choose your table layout and then click Next

Select your table style and then choose Next

Provide name for your report and then click on finish.

Your report is ready.

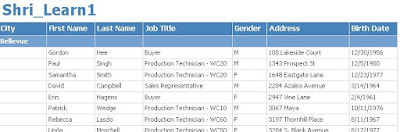

Click on Preview and take a look on your first reporting service report output.

Your First Report using Simple Report Wizard.


Tuesday, March 10, 2009

Introduction to Reporting Services

Microsoft SQL Server 2005 reporting services is a robust server based solution for building complex reports comprising of variety of relational and
multidimensional data sources. Once report is ready, we may publish it on a web server in various formats. We can set up security and subscriptions for this

Reporting services has GUI in order to create/publish/administer user reports. We can create report models using this tool as well. Once report model in ready, end user can play with it much easily in a secure zone.
